RG series Linear Guideway
RG series Linear Guideway
RG series linear guideway are classified into non-interchangeable and interchangeable types.
The sizes of these twotypes are the same as one another. The main diference is that the interchangeable type of blocks and rails can bereely exchanged and they can maintain P-class accuracy.
Because of strict dimensional control, the interchangeabletype linear quideways are a wise choice for customers when rails do not need to be matched for an axis. The modelnumber of the RG series identifies the size, type, accuracy class, preload class, etc.
Product Details

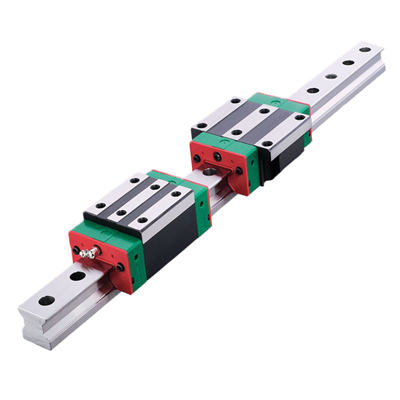

High rigidity Roller Type Linear Guideway are linear motion guiding devices that use cylindrical rollers as rolling elements. Compared with common ball linear guides, they have significant advantages in load-bearing capacity, rigidity, and stability.
RG series Linear Guideway Feature
RG series Linear Guideway feature rolling element and designed with 45-degree angle contact, offers high rigidity, loading capacities in all 4 load directions and high performance for high-precision manufacturing.
Radial rigidity up to 5,412 N/µm
Static load rating up to 572 KN
Contact angle 45°
RG series Linear Guideway Application
CNC machining centers
Heavy duty cutting machines
Grinding machines
Injection molding machines
Electric discharge machines
Wire cutting machines
Gantry machine
RG series Linear Guideway Typical Structures
1. V-Flat Combined Roller Guide: Simple structure, high manufacturing precision, high rigidity, widely used in grinding machines and other equipment.
2. Double V-Shaped Crossed Roller Guide: Roller axes are arranged at 90° angles, with equal load-bearing capacity in all directions, capable of withstanding large overturning moments.
3. Anti-Creep Crossed Roller Guide: Employs V-shaped track grooves and anti-creep cages, with built-in round pin gear guides to effectively solve cage misalignment problems.
RG series Linear Guideway Application Scenarios
Roller guides are particularly suitable for heavy-duty machine tools (such as large gantry milling machines, heavy-duty lathes, and large grinding machines).
Automated production lines, injection molding equipment, printing presses, and material handling systems—applications requiring high load-bearing capacity and stability.
Precautions
Manufacturing Precision: Roller guides require extremely high parallelism of the guide surface. Even minor errors can lead to roller misalignment and lateral sliding, accelerating wear.
Maintenance: Regular lubrication is necessary; avoid contamination to ensure long-term stable operation of the guide.
