Quiet Wide Width Linear Guideway
Quiet Wide Width Linear Guideway

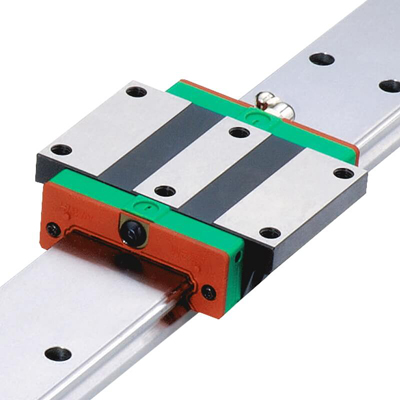

Quiet wide width linear guideway also called QW series linear guideway
Quiet wide width linear guideway are precision transmission components designed for high-load, low-noise environments. They combine the high rigidity of a wide-width structure with quiet operation, making them suitable for industrial scenarios with both space and noise constraints.
QW series linear guideway Application
Automation equipment
Transportation equipment
Precision measurement
equipment
Semiconductor equipment
Pet blowing machine
Single axis robots
Product Details
Quiet Wide Width Linear Guideway Feature

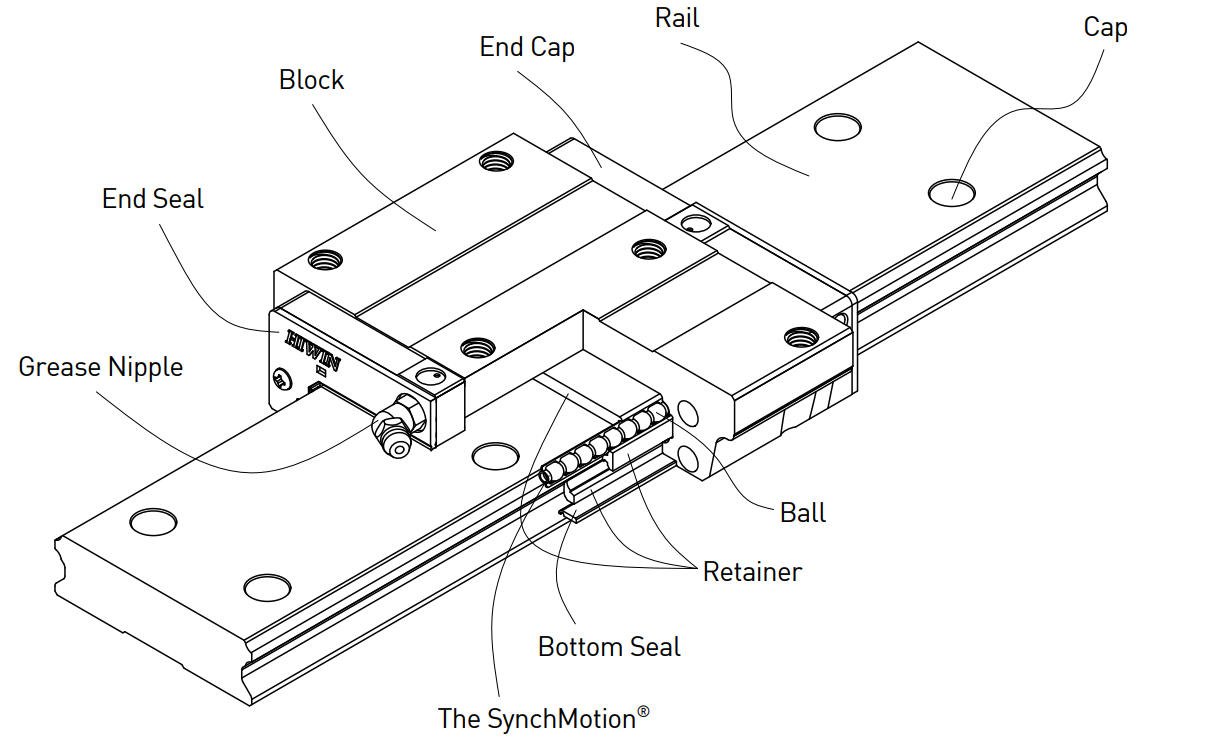

The QW series linear guideway with SynchMotion Technology possesses all the advantages of the WE serieswhich features high moment rigidity and is suitable for single rail or space saving applications. With theSynchMotion, technology it also provides quieter and smoother movement, superior lubrication, and longerservice life.
SynchMotion technology providing smooth and quiet operation, with superior lubrication and a longer service life; featuring wider rails and lowered assembly height achieving super high torsional resistance.
Low noise design: less than 5 dB
Limited space: Suitable for single rail
Higher torsional resistance: 3.5 times
Quiet Wide Width Linear Guideway Main Application Areas
These guides are particularly suitable for the following scenarios with dual requirements for noise and load:
1. Precision measuring instruments: such as semiconductor testing equipment, requiring high recision and a low-noise environment.
2. High-speed automated designs: such as industrial automated machines, requiring smooth operation and low noise.
3. Special environments: such as laser engraving machines, medical equipment, and other noise-sensitive applications requiring high reliability.
Quiet Wide Width Linear Guideway Selection Guidelines
When selecting a linear guide, load requirements, installation space, and noise control requirements should be considered comprehensively.
Relatd Products
What Our Customers Said?
FAQ
Yeah, we have some standard in stock. Including Ball screw with nut, linear guide rail and block, linear module, linear motor and servo motor.
Yes, we can manfacture ballscrew according to customers’ size details drawing or specification, and please offer us below details
1, Ballscrew diameter
2, Thread lead
3, Thread lenght and total ballscrew length
4, End journal configuration
5, Nut configuration
6, Accuracy(lead deviation, geometrical tolerance)
7, Working speed
8, Maximum static load, working load, preload drag torque)
9, Nut safety requirement
10, Lubrication
Usually 45 working delivery days for C5 and P5 accuracy ball screw, but for C7-C10 ballscrew just need 15 working days.
From 50W to 1500W.
We have our own brand, but also we offer HIWIN, Delta, Leadshine, Mitsubishi and others famous brand motor.
Yes, but you need inform us details requirement we need, then our engineer can help you design.
Standard parts: 7-15days.
Non-standard parts: 15-25days.
We will make the delivery as soon as possible with the guarantee quality.
By T/T, for samples 100% with the order; over US $10000, 30% paid for deposit by T/T before production arrangement, the balance to be paid before shipment.
Yes, we can receive.
