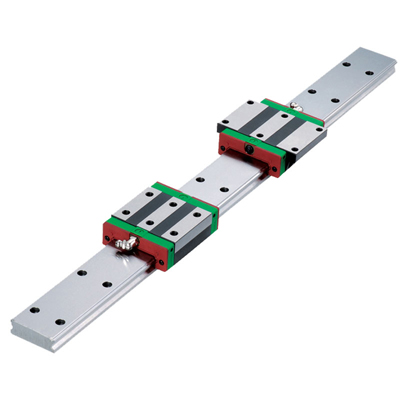

Four Row Wide Rail Linear Guideway also called WE series linear guideway
Four Row Wide Rail Type Linear Guideway features eaual load ratings in the radial, reverse radial and the lateral direction with contact points at45 degrees.
WE series Row Wide Rail Linear Guideway Application
Automation equipment
Transportation equipment
Precision measurement equipment
Semiconductor equipment
Pet blowing machine
Single axis robots
Product Details
Four row wide rail linear guideway along with the wide rail, allows the guide way to be rated for high loads, moments and rigidity. Bydesign, it has a self-aligning capacity that can absorb most installation errors and can meet high accuracy standards.
The ability to use a single rail and to have the low profile with a low center of gravity is ideal where space is limitedand/or high moments are required.
WE series Row Wide Rail Linear Guideway Feature
With wider rails and lowered assembly height achieving super high torsional resistance.
Space limitation: Suitable for single rail
Higher torsional resistance : 3.5 times
Construction feature
1. Rolling circulation system: Block, rail, end cap and retainer
2. Lubrication system: Grease nipple and piping Joint
3. Dust protection system: End seal, bottom seal, cap and scraper
Relatd Products
What Our Customers Said?
FAQ
Yeah, we have some standard in stock. Including Ball screw with nut, linear guide rail and block, linear module, linear motor and servo motor.
Yes, we can manfacture ballscrew according to customers’ size details drawing or specification, and please offer us below details
1, Ballscrew diameter
2, Thread lead
3, Thread lenght and total ballscrew length
4, End journal configuration
5, Nut configuration
6, Accuracy(lead deviation, geometrical tolerance)
7, Working speed
8, Maximum static load, working load, preload drag torque)
9, Nut safety requirement
10, Lubrication
Usually 45 working delivery days for C5 and P5 accuracy ball screw, but for C7-C10 ballscrew just need 15 working days.
From 50W to 1500W.
We have our own brand, but also we offer HIWIN, Delta, Leadshine, Mitsubishi and others famous brand motor.
Yes, but you need inform us details requirement we need, then our engineer can help you design.
Standard parts: 7-15days.
Non-standard parts: 15-25days.
We will make the delivery as soon as possible with the guarantee quality.
By T/T, for samples 100% with the order; over US $10000, 30% paid for deposit by T/T before production arrangement, the balance to be paid before shipment.
Yes, we can receive.
