CG Series Linear Guideway
CG Series Linear Guideway

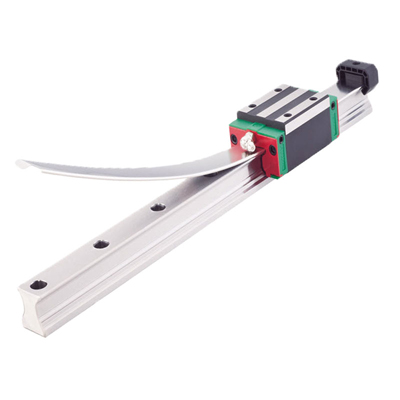

Torque-resistant Linear Guideway Also Called CG Series Linear Guideway or CG Series Superior Rolling Moment with Cover Strip Linear Guideway
Features of CG Series Linear Guideway
CG series feature high rigidity, load, torsional stiffness. With four equal load characteristics. This specification can be matched with the new dustproof accessories.
High rolling moment resistance: 200 %
Contact angle : 45°
Better protection: cover strip of rail
CG Series Linear Guideway Application
Grinding
Milling and drilling machine
Lathe
Machining center
Measurement equipment. Transportation equipment
Product Details
CG Series Linear Guideway
CG Series -Superior Rolling Moment with Cover Strip Linear Guideway
CG Series Linear Guideway, CG Series Superior Rolling Moment with Cover Strip Linear Guideway are transmission components specifically designed for high-precision and high-rigidity applications. Their core advantage lies in their enhanced torque resistance through a special structural design, making them suitable for woodworking machinery, grinding machines, CNC machine tools, and other equipment.
Preload and Accuracy: For high-precision applications, a preload level should be selected, and attention should be paid to the flatness requirements of the guideway mounting surface.
CG series linear guideways are a four-row arc-tooth contact type, featuring high rigidity, high load, and high torsionaresistance, lt also has four-way load characteristics, This specification can be matched with the latest slide dustproo accessories.
CG Series Superior Rolling Moment with Cover Strip Linear Guideway Main Feature
1. High rolling moment resistance
CG rail designed with DB type lalso known as o arrangement, has longer range of moment compared to DF type lalsoknown as x arrangement,. lt is sutiable for applications that have larger rolling moment.
2. Optimal recirculation pathBetter smoothness due to integrated component.
3. Better protection
The CG series uses a metal scraper as a standard accessory for protection against high temperature chips and
particles.
4. Latest dustproof accessory for rail
The CG series offers a special stainless cover strip for better dust protection than standard bolt caps
5. Full lubrication
Snecially designed for short stroke motion
CG Series Superior Rolling Moment with Cover Strip Linear Guideway Main Application Scenarios
1. Industrial Equipment: Precision machine tools such as grinding machines, machining centers, and wire EDM machines.
2. Woodworking and Grinding Machinery: Applications requiring resistance to cutting torque; the quick-installation design of the CG series guideways can prevent damage to the seals.
3. Automated Production Lines: Applications requiring high motion stability, such as material handling machinery and precision measuring instruments.
Selection Recommendations
Model Examples: HIWIN CG series (such as CGH30CA and CGH45HA) offers various specifications; selection should be based on load, speed, and installation space.
